CISCO SG500X-48-K9-G5 - Cisco 48-Port Gig w 4Pt 10-Gig Stackable Manged

Buy CISCO SG500X-48-K9-G5 - Cisco 48-Port Gig w 4Pt 10-Gig Stackable Manged refurbished from Renewtech.co.uk – sustainable IT, fast UK delivery, and up to 3 years’ warranty.
Stock:
Out of stock
Condition:
Refurbished
Warranty:
1 Year
Co2 Savings:
343.78 KG.

Score

Ask for price
For same day shipping, order within
Notify me when this product is in stock

Description

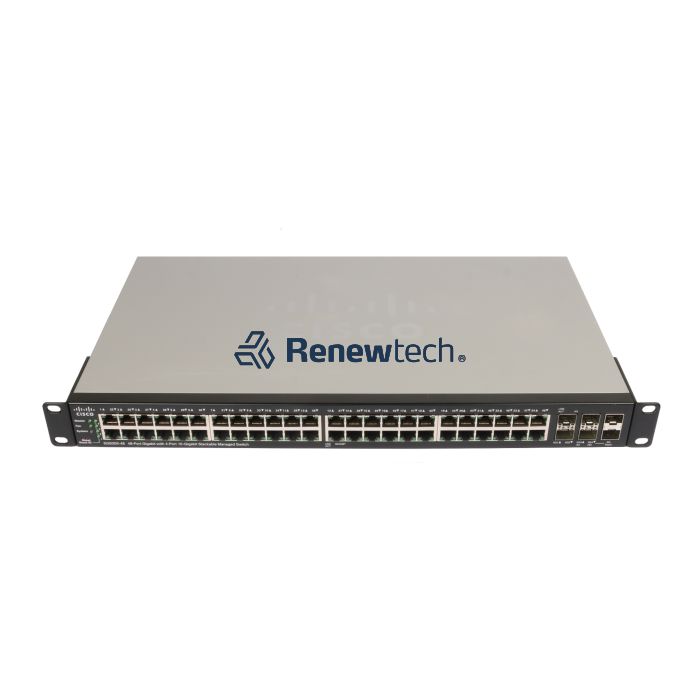

CISCO SG500X-48-K9-G5 - Cisco 48-Port Gig w 4Pt 10-Gig Stackable Manged

Designed for demanding enterprise environments, the Cisco SG500X series switch offers a robust solution for IT departments seeking high performance and reliability in network infrastructure. This managed, stackable switch supports advanced Layer 2 and Layer 3 functionality, making it ideal for complex network configurations. Its 48 Gigabit Ethernet ports, accompanied by four 10-Gigabit ports, ensure seamless scalability and bandwidth management, crucial for growing businesses and data-intensive applications.

With a switching capacity of 176 Gbit/s and a throughput of 130.95 Mpps, this switch efficiently handles heavy traffic loads, supporting up to 4096 VLANs and enabling sophisticated network segmentation strategies. The device's compatibility with industry standards, such as IEEE 802.1Q and IEEE 802.3, ensures seamless integration with existing network systems while supporting essential features like Quality of Service (QoS) and multicast handling. Additionally, its robust security protocols, including 802.1x RADIUS, SSH, and SSL/TLS, safeguard network integrity against unauthorized access.

Operational excellence is further enhanced through its web-based management and firmware upgradeability, allowing for streamlined maintenance and future-proofing investments. The device operates within a temperature range of 0 to 40 °C, suitable for a variety of environmental conditions, while its efficient 60.3 W power consumption minimizes operational costs. Built-in features like ARP inspection, link aggregation, and flow control provide additional layers of network reliability, making it a cost-effective choice for businesses prioritizing dependable, high-performance networking solutions.

Specifications

Brand CISCO
Co2 Savings 343.78
Certificates
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Data transmission
Jumbo frames 9216
Jumbo frames support Yes
MAC address table 16000 entries
Maximum data transfer rate 10 Gbit/s
Number of IP interfaces 256
Number of queues 8
Number of static routes 2048
Packet buffer memory 24 MB
Switching capacity 176 Gbit/s
Throughput 130.95 Mpps
Design
LED indicators Link, PoE
Number of fans 2 fan(s)
Product colour Black
Reset button Yes
Stackable Yes
Management features
ARP inspection Yes
MIB support Y
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Web-based management Yes
Multicast features
Multicast support Yes
Network
10G support Yes
Broadcast storm control Yes
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Head-of-line (HOL) blocking Yes
Link aggregation Yes
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs 4096
Port mirroring Yes
Rate limiting Yes
Spanning tree protocol Yes
VLAN support Yes
Virtual LAN features Private VLAN, Tagged VLAN
Operational conditions
Heat dissipation 189.5 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 32 - 104 °F
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Other features
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Packaging content
Cables included AC, Serial
Quick start guide Yes
Packaging data
Mounting brackets included Yes
Resource CD Yes
Performance
Built-in processor Yes
Compatible operating systems Windows, Linux, Mac OS X
Firmware upgradeable Yes
Flash memory 32 MB
Internal memory 256 MB
Mean time between failures (MTBF) 166796.4 h
Minimum system requirements Mozilla Firefox 3.6+ IE 7+
Noise level 41.1 dB
Processor frequency 800 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
SFP+ module slots quantity 2
Power
AC input frequency 47/63 Hz
AC input voltage 100 - 240 V
Power consumption (typical) 60.3 W
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Protocols
Management protocols SNMP v1/v2c/v3, MIB, HTTP/HTTPS, RMON, IPv4, IPv6
Supported network protocols IPv6
Security
Access Control List (ACL) Yes
BPDU filtering/protection Yes
DHCP features DHCP server, DHCP client
IGMP snooping Yes
Loop protection Yes
SSH/SSL support Yes
Security algorithms 802.1x RADIUS, SSH, SSL/TLS
Weight & dimensions
Depth 257 mm
Height 44 mm
Weight 4.01 kg
Width 440 mm
